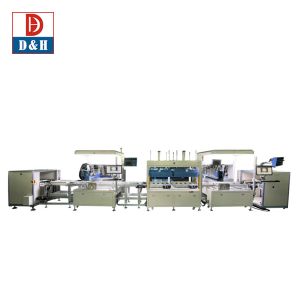

Low Pressure Vacuum Potting Machine for Automatic AB Epoxy Polyurethane Silicone Resins

Name: Low Pressure Vacuum Potting Machine for Automatic AB Epoxy Polyurethane Silicone Resins
Brand: Daheng
Price: 11 USD

Cheap Low Pressure Vacuum Potting Machine for Automatic AB Epoxy Polyurethane Silicone Resins for sale

Type : Gluing Machine

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Italy, Viet Nam, Russia, Thailand, Malaysia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Pump

Application : Chemical, Reverse Sensor and electronic components , ignition coils...

Packaging Type : Polywood case

Packaging Material : Plastic, Polywood-case

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 230V,380V

Place of Origin : Guangdong, China

Brand Name : Daheng

Weight : 800 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Name : AB epoxy polyurethane silicone resins under vacuum potting machine

Functions : Vacuum in low pressure

Feeding way : Automatic

Control mode : PLC and communication module

working area : 400x600x100mm or customized

tank compacity : 10L,25L,40L Optional

Speed : 0-300mm/s

Ratio : 1:1-10:1

Applied Materials : two-component adhesive pu , epoxy , silicones

Marketing Type : Ordinary Product

Packaging Details : Standard polywood case or According to the customer requirement

Port : Guangzhou

Supply Ability : 50 Piece/Pieces per Month MOQ=1PCS

Price : $11,900.00/pieces 1-1 pieces

Contact Now

Product Overview

Preheating oven vacuum chamber and curing oven potting system AB epoxy polyurethane
Silicone resins under vacuum potting machine

* Suitable for large, heavy duty products ,vacuum pressure adjustable

* Applications: Reverse Sensor, Electronic Circuit Board, Electronic Ballast ，air Filters, LED products ,Electronic components,Crafts，Ads modules, Capacitors, Power supply, Transformer, end cap for filter, solar junction box ，Power module,
Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. Etc

FEATURES AT A GLANCE

Features
Oversized vacuum box
Suitable for large, heavy duty products
Vacuum pressure adjustable

Low Pressure Vacuum Potting Machine for Automatic AB Epoxy Polyurethane Silicone Resins

Workshop picture

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Glue ratio	1 ：1 ---10：1
Ratio acurracy	±2%
Glue-out speed	1g/s --24g/s
Glue-out accuracy	±2%
Program memory	99 pcs
Glue viscosity	50cps~8000cps（Reference number）
Opearation Mode	Manual mode /Automatic mode
Ratio Control	PLC/ Double plunger pump (Can change different type of metering pumps)
Flow Control	Digital input
Parameter display	Pointer / digital display
Automatic control system	Touch screen / button switch/ third party signal
Mixing Method	Static mixing / Automatic cleaning
Storage Tank	Stainless steel A and B(10L,25L ,40L optional)
		Stainless steel cleaning berrel C（7L）
		Vacuum degas（-0.1MPa）
		Liquid level sensor（Low liquid level/high liquid level）
		A/B Tank stirring
		AB glue constant temperature heating(available)
		Glue filter
Power	220V/50Hz/5000W
Outer dimension	Glue Potting Machine：995mm×600mm×1500mm
Frame Materials	Cold rolled steel/industrial aluminum/stainless steel/sheet metal

Applciation 1

Application 2

Applied resin : PU , epoxy , silione
