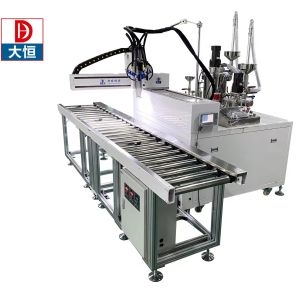

Automatic Feeding Way Vacuum Chamber Dispensing Potting Machine for precision Potting

Name: Automatic Feeding Way Vacuum Chamber Dispensing Potting Machine for precision Potting
Brand: Daheng
Price: 29 USD

Cheap Automatic Feeding Way Vacuum Chamber Dispensing Potting Machine for precision Potting for sale

Type : Gluing Machine

Applicable Industries : Manufacturing Plant

Showroom Location : Turkey, Italy, Viet Nam, Russia, Thailand, Malaysia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Pump

Application : Chemical, Reverse Sensor and electronic components , ignition coils...

Packaging Type : Polywood case

Packaging Material : Plastic, Polywood-case

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 230V,380V

Place of Origin : Guangdong, China

Brand Name : Daheng

Weight : 800 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Name : electronics potting machine under high vacuum pressure

Functions : Vacuum in low pressure -0.1Mpa

Feeding way : Automatic

Control mode : PLC and communication module

working area : 400x600x100mm or customized

tank compacity : 10L,25L,40L Optional

Speed : 0-300mm/s

Ratio : 1:1-10:1

Applied Materials : two-component adhesive pu , epoxy , silicones

Price : $29,000.00/pieces 1-1 pieces

Contact Now

Product Overview

Electronics potting machine under high vacuum pressure

* Suitable for large, heavy duty products ,vacuum pressure adjustable

* Applications: Reverse Sensor, Electronic Circuit Board, Electronic Ballast ，air Filters, LED products ,Electronic components,Crafts，Ads modules, Capacitors, Power supply, Transformer, end cap for filter, solar junction box ，Power module, Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. Etc

FEATURES AT A GLANCE

* Features
Oversized vacuum box
Suitable for large, heavy duty products
Vacuum pressure adjustable

Automatic Feeding Way Vacuum Chamber Dispensing Potting Machine for precision Potting

Pictures

Application

PRODUCT SPECIFICATIONS

Glue ratio	1 ：1 ---10：1
Ratio acurracy	±2%
Glue-out speed	1g/s --24g/s
Glue-out accuracy	±2%
Program memory	99 pcs
Glue viscosity	50cps~8000cps（Reference number）
Opearation Mode	Manual mode /Automatic mode
Ratio Control	PLC/ Double plunger pump (Can change different type of metering pumps)
Flow Control	Digital input
Parameter display	Pointer / digital display
Automatic control system	Touch screen / button switch/ third party signal
Mixing Method	Static mixing / Automatic cleaning
Storage Tank	Stainless steel A and B(10L,25L ,40L optional)
		Stainless steel cleaning berrel C（7L）
		Vacuum degas（-0.1MPa）
		Liquid level sensor（Low liquid level/high liquid level）
		A/B Tank stirring
		AB glue constant temperature heating(available)
		Glue filter
Power	220V/50Hz/5000W
Outer dimension	Glue Potting Machine：995mm×600mm×1500mm
Frame Materials	Cold rolled steel/industrial aluminum/stainless steel/sheet metal

Applciation 1

Application 2

Applied resin : PU , epoxy , silione

Successful Project

About Company

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.

Certifications

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers

Exhibition

Packing & Delivery

■ Standard Wooden Case with Vacuum Package

● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.

FAQ

Q：Do you offer oversea service? A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q：How dose your factory do regarding quality control? A：We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail.
Q：What are your payment terms? A：Normally, 30% advance by T/T and balance paid off before delivery.
Q：Are you a factory or trading company ? A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
