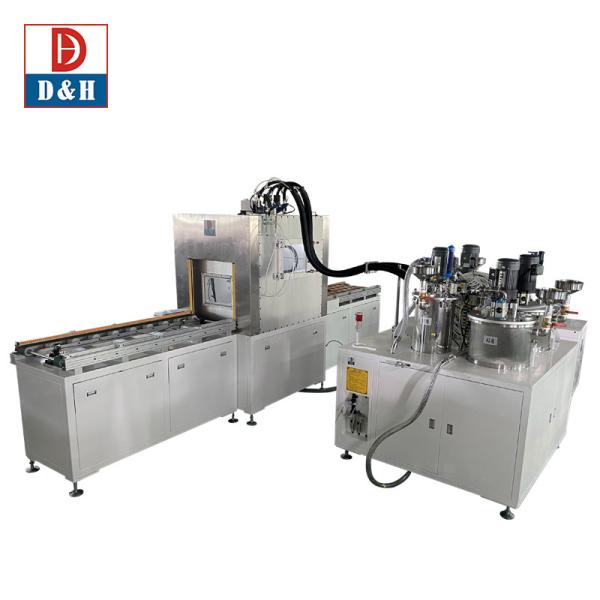

vacuum chamber vacuum potting equipment Motor and stator epoxy resin machine vacuum chamber potting epoxy machine for IGBT

Type : Gluing Machine

Applicable Industries : Manufacturing Plant

Showroom Location : Egypt, Turkey, Italy, Viet Nam, Russia, Malaysia, Australia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Motor, Pump

Condition : New

Application : Chemical

Packaging Type : Polywood case

Packaging Material : Plastic, Metal, Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 230V

Place of Origin : Guangdong, China

Brand Name : Daheng

Weight : 800 KG, 800kg

Warranty : 1 Year

Key Selling Points : High-accuracy

Definition : vacuum chamber potting epoxy machine

XYZ Working Area : 1200x1200mm customized

Size : 1600mm*1200mm*1500mm

Mixing Ratio : From 1:1 to 10:1(Adjustable)

Stiring Method : Static or Dynamic

Pump : Daheng Patent Plunger Pump

Out-Gluing Rate : 5-66g/5s

Mixing Precision : +/-1%

Container Volume : A:25L B:10L

Packaging Details : Wooden carton
Automatic vacuum filling machine epoxy resin and silicone AB two components glue machine

Port : Guangzhou/Shenzhen

Supply Ability : 100 Unit/Units per Month

Price : $48,000.00/sets 1-1 sets

Contact Now

Why Choose Us

vacuum chamber vacuum potting equipment Motor and stator epoxy resin machine vacuum chamber potting epoxy machine for IGBT

We specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

Potting and Isolation is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Isolation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.

We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems .
Product Description
vacuum chamber vacuum potting equipment Motor and stator epoxy resin machine vacuum chamber potting epoxy machine for IGBT
vacuum chamber vacuum potting equipment Motor and stator epoxy resin machine vacuum chamber potting epoxy machine for IGBT


Description of the machine
PGB-1200 Silicone , plyurethane , epoxy potting system
AB Resins compound dosing , dispensing ,potting system ,2K potting technology AB glue dispensing machine Epoxy dispensing machine Two-component dispensing machine，Dual-component dispensing machine Meter-mix dispensing machine，Resin dispensing machine Adhesive dispensing system，Dispensing robot with high precision Dispensing valve, Liquid dispenser , Automated dispensing equipment

Introduction ：
1. Working Mode: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3. Core metering pump specially design for different material from low to high viscosities.
4. Mix glue A & B more evenly; no more or no less for agent B.
Working principle ：
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Tank system technology：
1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .
2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.
3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6 Tank with heater which can preheat materials to assure good flowability .
7 Tank with artificial feeding mouth that can be added glue appropriately by hand . 8 Tank with silica-dryer which can prevent material especially PU from crystallization .
vacuum chamber vacuum potting equipment Motor and stator epoxy resin machine vacuum chamber potting epoxy machine for IGBT


D&H Pump technology

1. Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s，Repetition accuracy:0.2g.
3.Also Suitablefor high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.

Valve technology


1. Dynamic mixing with stirring detecting function that ensure glue mixing evenly .
2 Stainless design of the glue touch surface to capture more higher material compatibility .
3 Glue valve with flow-back prevent function that can prevent glue from dropping when stop gluing .
4 Sealing parts of rod shaft adopt imported parts to keep more higher durability .
5 The self-cleaning function make machine cleaning more easier that you needn’t dis-assembly the parts to wash . Cleaning time and cleaning times could be set in the touch screen.
vacuum chamber vacuum potting equipment Motor and stator epoxy resin machine vacuum chamber potting epoxy machine for IGBT


Specification
ITEM
Parameter
Mixing ratio
1:1--10:1 adjustable
Working range
1200*1200*100mm
Displacement speed
250MM/S
Out-glue speed
1-12g/s per single pump
Accuracy
±2%（output volume）±2%（mixing）
tolerance
≤0.2mm
Flow control
Digital input
Program memory
99-999PCS
Motion trail
Dot , line ,curve ,circle
Automatic controlling system
Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system
AB glue back suction valve, achieve AB glue independent operation
Programmatically
Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
Mixing method
dynamic mixing
Power supply
220V/50Hz/1500W without heating
Air source
0.5-0.8Mpa
Viscosity range
50-50000cps
Outer dimension
1500L*1200W*1600H mm
A tank
10L 25L 40L stainless tank（optional）
B tank
10L 25L 40L stainless tank（optional）
Others
AB tank 、A pump、AB pipeline heating function
PLC Operation Controlling System

1 Dispensing volume is controlled by the speed of pump’s motors ; Glue speed adjustable within the speed range .
2 Machine with
detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation ..
Application
vacuum chamber vacuum potting equipment Motor and stator epoxy resin machine vacuum chamber potting epoxy machine for IGBT

1.Potting&Isolation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reversesensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....
2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid dispensing....
3.Bonding&doming : LCD screen ,LOCA bonding，ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts ,photo frame , and other arts graphics....
Applicable Materials
vacuum chamber vacuum potting equipment Motor and stator epoxy resin machine vacuum chamber potting epoxy machine for IGBT

1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU,Ployerster, Polyurethane, UV materials and so on .
Our customer cases
vacuum chamber vacuum potting equipment Motor and stator epoxy resin machine vacuum chamber potting epoxy machine for IGBT
Service Term
1、 Staff training
Seller is responsible to provide machine’s training including installation, debugging, maintenance to assured
customer can totally use the operation skills and well acknowledge maintenance of machine .
2、Maintenance Service
2.1Seller provide one year warranty period and support free maintenance service during warranty . Software
upgrade service is provided for a long life time.
2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part
replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.
