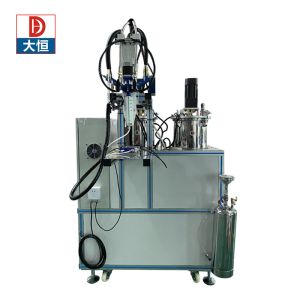

epoxies filling and pouring machine for electronic components
Mixing and Dispensing Equipment Solutions for Electronic Component Manufacturing Processes
Technical data sheet : Vertical glue mixing machine JYPJ-1000
| Glue mixing machine | 100:100—100:10 optional |
| Control mode | Manual mode |
| Precision | 2%(mixing glue) |
| Program memory | 20pcs |
| Input pressure | 0.5MPa—0.7MPa |
| Glue viscosity /25℃ | 1cps~30000cps |
| Operation mode | Manual |
| Ratio control | PLC/ double cylinder plunger pump |
| Flow control | Digital input |
| Automatic controlling system | PLC/Touch screen (Realize programming, modification, storage, etc.) |
| Out-glue controlling system | AB glue suction valve ensure AB glue running separately |
| Mixing method | Static or dynamic optional./ Instant mixing and easy to clean |
| Storage tank system | Stainless tank (10L),(10L)optional |
| Power supply | 230V/50Hz/1200W |
| Dimension | 850mm×800mm×1800mm |
PJL-1000 Economy glue potting machine
Features
Small size and easy to install
Easy to operate, easy to learn
Multiple configuration, suitable for a variety of products
PJL-1500 Glue mixing machine
Features
Stainless steel table
Suitable for multiple scenes
Free to control, easy to learn
PJL-1200 Standard dispensing machine
Multiple configuration, suitable for a variety of products
High versatility and high cost performance
Suitable for various products
Can be used with production lines
PJL-1000
Dimension: 1050*1000*1700mm
PJL-1500
Dimension: 1500*1000*1700MM
PJL-1200
Dimension: 1650*750*1900MM
AB ratio:100:100-100:10 adjustable
Movment Track:Dot/Line/Arc/Circle
Speed:500mm/s(Movement speed) 1-12ml/s(gluing out speed)
Accuracy: ±2%(potting) ±2%(mixing)
Input pressure:0.5MPa-0.7MPa
Viscosity:50cps-30000cps(Viscosity can be down via heating glue)
Operation:Manual/Automatic
Meter Pump:Gear pump/Screw pump/Double cylinder plunger pump
Flow Control: Digital Input
Programming method: teaching programming
Automated control system: PLC / touch screen (programming, modification, storage, etc.)
Glue control system: AB glue suction valve to achieve independent operation of AB glue
Mixed mode: dynamic static optional, instant mixing, easy to clean
Tank:stainless steel tank (60L),(50L),(40L),(25L),(10L)optional
Power supply: 220V/50Hz/1200W ( Test under heating unction is not power on)
Features and Benefits:
1. Sealing & Vacuum System
2. An automatic systerm of metering and mixing.
3. Self-refilling
4. Self-cleaning
5. Easy to change the flow speed, ratio on the touch screen.
6. Easy to operate, assembly and disassembly.
7. Our Patent double cylinder plunger pump; Specially designed for high precision, wearability and long life time
Application:
PLJ-800 can be applied in electronical & electroniccs where glue dispensing, mixing is demanded for sealing, filling, gluing such as: Power supply, driver, transformer, controller, motor, circuit, PVB board so on and so mass.
