Customizable LED Strip Light Auto Glue Dispenser Machine for L6000xw1200xh1500mm Size

Product Categories

Guangzhou Zhengqi Technology Co.,Ltd

Contact Now

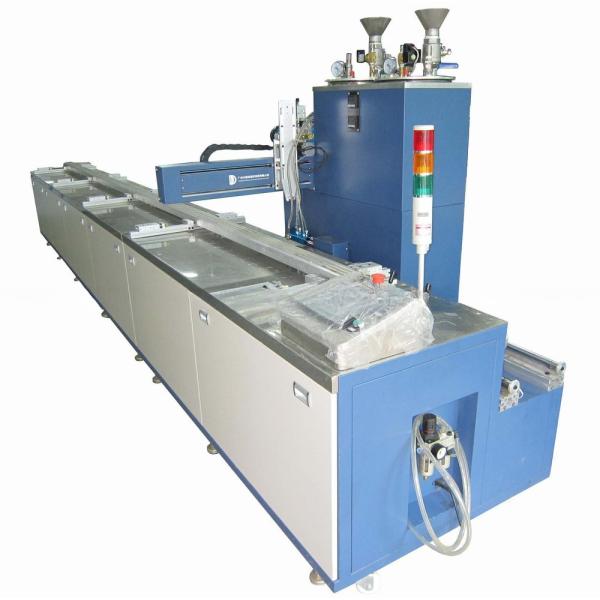

Customizable LED Strip Light Auto Glue Dispenser Machine for L6000xw1200xh1500mm Size

Name: Customizable LED Strip Light Auto Glue Dispenser Machine for L6000xw1200xh1500mm Size
Brand: Daheng
Price: 1.00 USD

Cheap Customizable LED Strip Light Auto Glue Dispenser Machine for L6000xw1200xh1500mm Size for sale

Type : Gluing Machine

Condition : New

Application : LED lighting, electric component

Packaging Type : Cartons

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : AC220V or AC 380V

Power : 900W-1.5KW

Place of Origin : Guangdong, China

Brand Name : Daheng

Model Number : PG-5000

Dimension(L*W*H) : L6000xw1200xh1500mm

Weight : 810kgs, 960kg

After-sales Service Provided : Engineers available to service machinery overseas

Certification : CE, SGS

Definition : LED Strip Light Auto Glue Machine Dispenser

Xyz Working Area : 5000X480X30mm

Size : L6000xw1200xh1500mm

Ratio : From 1:1 to 10:1

Stiring Method : Static or Dynamic

Pump : Daheng Patent Plunger Pump

out-Gluing Rate : 5-66g/5s

Mixing Precision : +/-1%

Container Volume : a:25L B:10L

Packaging Details : Wooden carton :2040*1000*1150mm
2040*1000*1450mm
2040*1000*950mm

Port : Guangzhou, Shenzhen

Supply Ability : 600 Set/Sets per Month

Price : $1.00 - $2.00/sets

Contact Now

LED Strip Light Auto Glue Machine Dispenser

I. Tech Data
Glues Ratio: From 1: 1 to 10: 1
Stirring mode: Static(standard)/dynamic(optional)
XYZ working area: 5000mm*480mm*30mm
Data Memory: 100
Program Method: Teaching and show-how method
Size: 6000× 1200 X1300mm
Power Input: AC220
II. Features
1. An automatic system of simultaneous metering, mixing and dispensing
2. Glues ratio and out-gluing quantity can be adjusted easily and freely
3. Precise mixing helps to avoid possible glue waste in working
4. Easy to operate and progra
5. Easy to disassembly and install
6. Vacuum and automatic cleaning
7. Wide applications
8. Suitable for the glue injecting of LED strip light under 5m length
9. The configuration could be changed according to customers 'demand
III. Industrial Application
Glue dispensing for surface, U-shaped tube, and various LED bar & stripe lights

Model & Type	PG-5000 LED Strip Light Auto Glue Machine Dispenser
Certificate	CE, SGS
Dimension	6000x1200x1500mm
N.W.	950kg
XYZ Working Area	480x5000x30mm
Flow Speed	0-66g/5s, or customized
Moving Speed	0-300mm per second
Glue & Ratio	1:1 to 10:1, Epoxy, Silicone, PU, UV
Repeatability	+/-0.02g
Accuracy	+/- 1%
Power	AC220V or AC 380V
Total Power Consume	1kw
Additional Functions	Heating, Vacuum, Self-refilling, Self-cleaning
Application	LED flexible strip

LED Strip Light Auto Glue Machine Dispenser

Customizable LED Strip Light Auto Glue Dispenser Machine for L6000xw1200xh1500mm Size
